93FTF Battery for Dell Precision 3520 3530 Latitude 5480 5490 5580 5590 | 11.4V 51Wh 3-Cell

Detailed Product Specifications and Features:

Core Technical Parameters:

Property	Specification
Model Numbers	93FTF / DY9NT / 093FTF Battery
Battery Type	Lithium-ion Polymer (High-Density Medium Format)
Voltage	11.4V (Fully compatible with 11.1V systems)
Capacity	4470mAh / 51Wh
Cells	3-Cell
Connector	Internal Cable Ribbon (Integrated)
Condition	100% Brand New from Factory
Life Cycle	600 - 1000 recharge cycles
Multiple Protection	Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI
Color	Black
Certifications	UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133
OEM/ODM	Yes(Accepted)
Warranty	18 Months After Sales, 24/7 Email Support.
Product Dimensions	12×4.5×1.2 inches
Item Weight	11.2 ounces

Technical Note:

Design Note: The 93FTF is an internal Lithium-polymer battery.

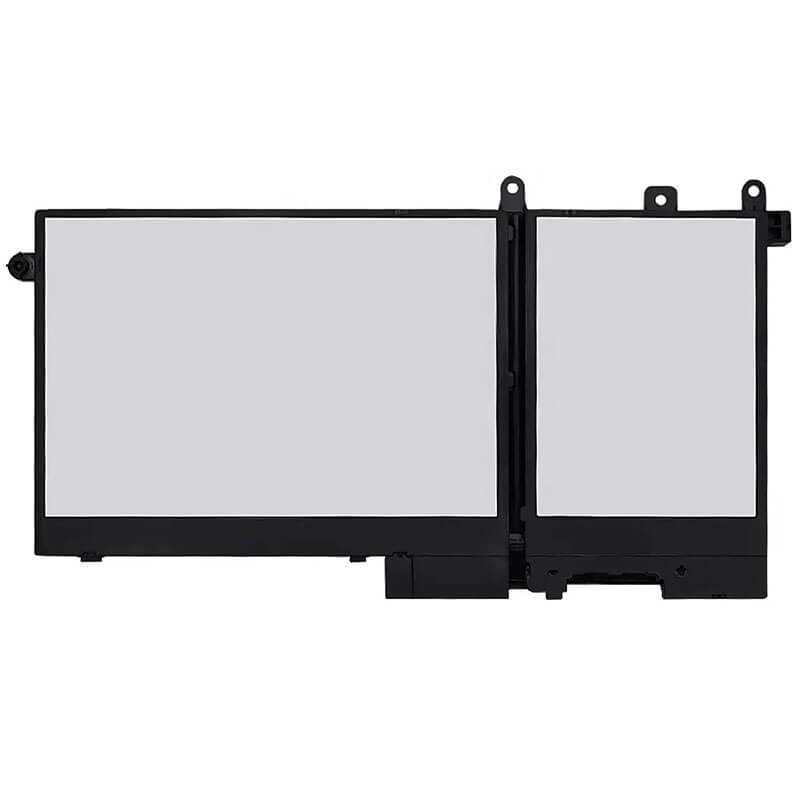

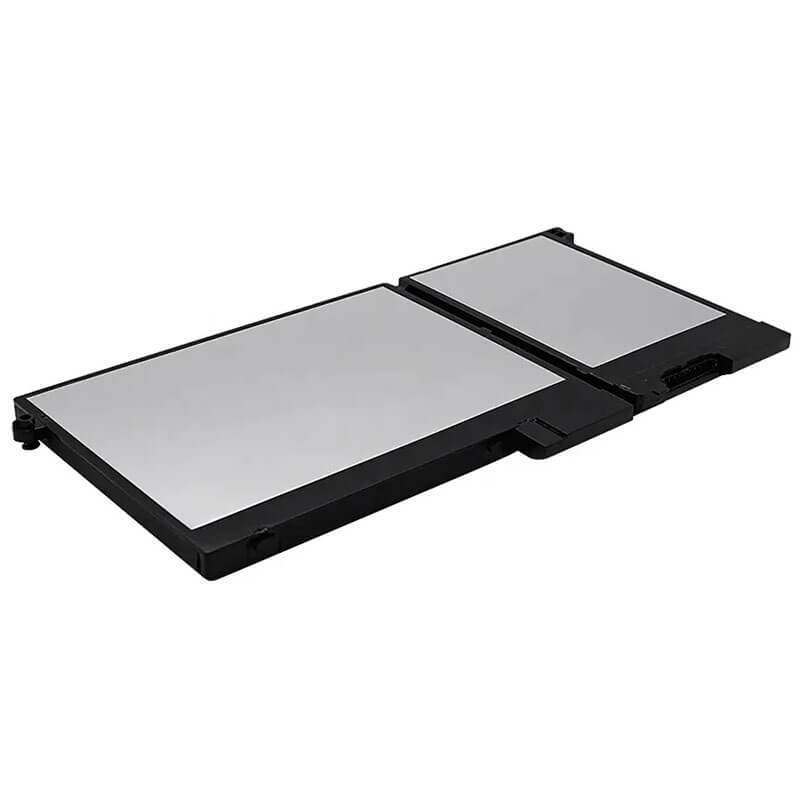

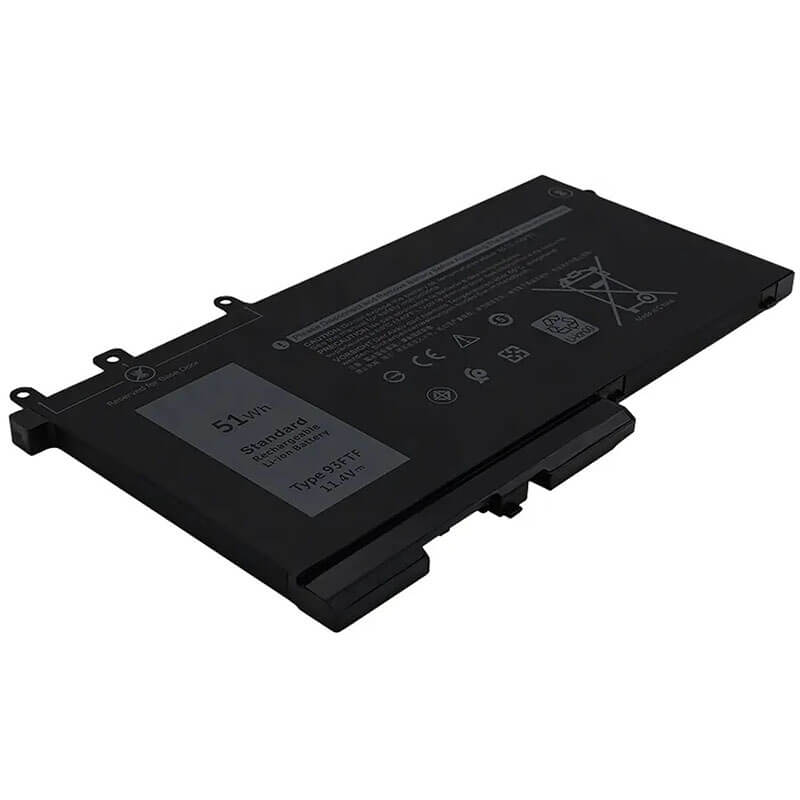

Visual Identification: It is a medium-length rectangular plate.

Capacity Distinction: This is the 51Wh version, which offers more endurance than the 42Wh entry-level model.
The SATA Rule: Unlike the 68Wh GJKNX, the 51Wh 93FTF is designed to fit specifically in chassis configurations using M.2 SSDs.

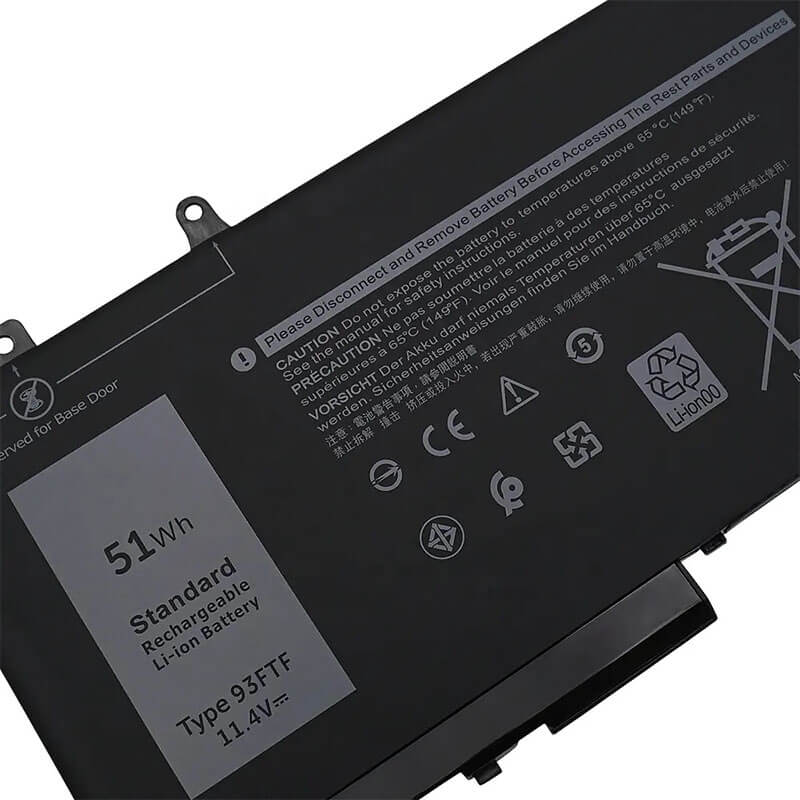

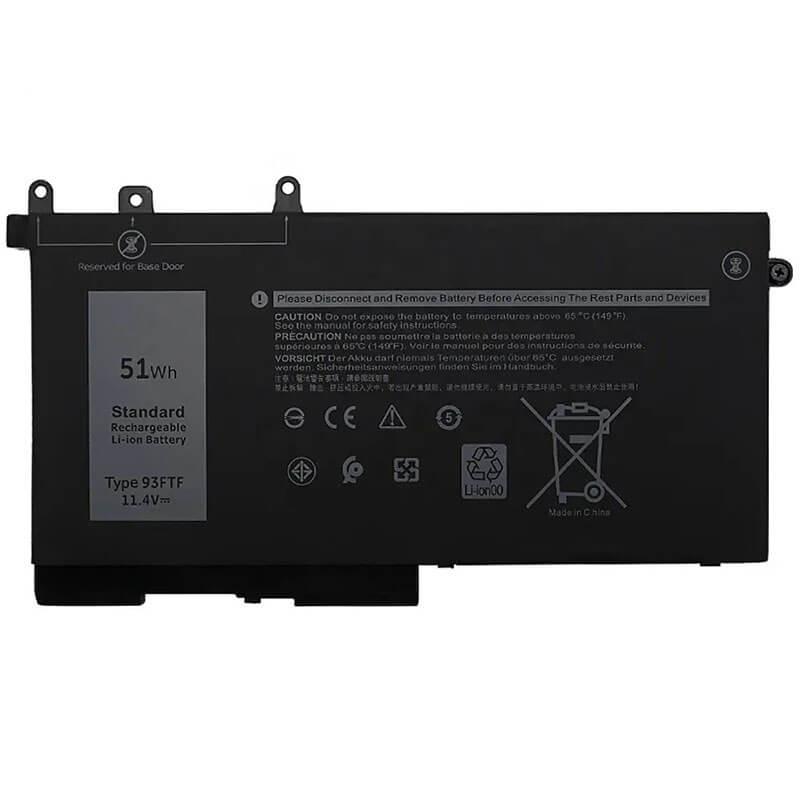

Important: Please check your original battery label; if it says 93FTF or DY9NT, this is your exact 1:1 replacement.

Product Features:

• Battery Newest Premium Grade Cells
• Best Circuit Board
• Multiple command chip control, keep the battery stable charge and discharge;
• Over-charger protection and discharger protection, short-circuit protection, ensure fast charges and low power consumption
• Easy & Quick Installation
• Our battery is 100% compatible with the original battery and meets
• CE/FCC/ROHS/UL-certified standards. It is 100% new from the manufacturer and can support up to 1000 recharge cycles over the life of the battery

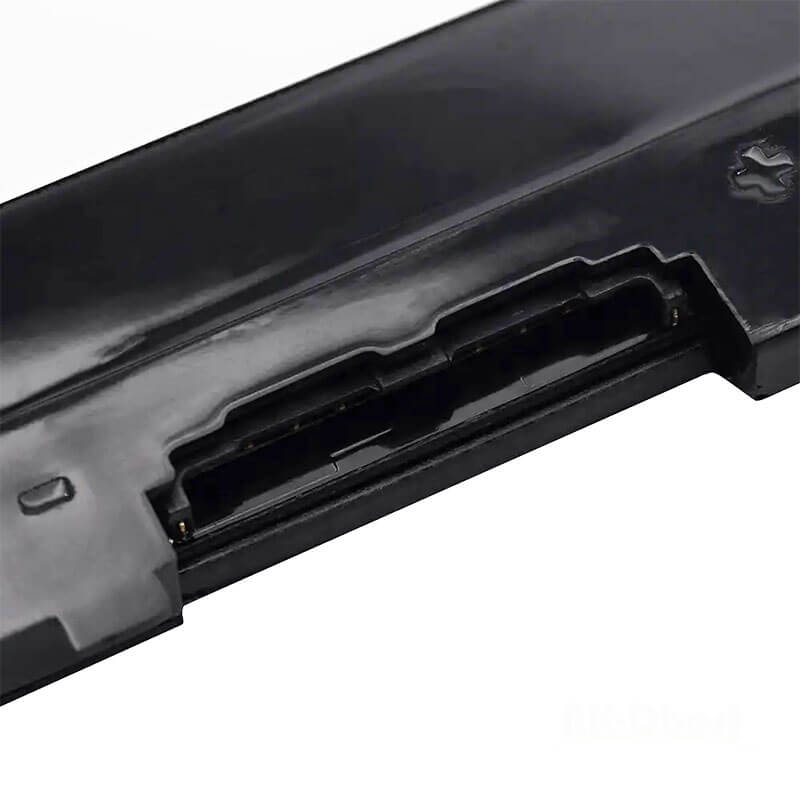

• Power Interface: Gold-plated connector points to ensure current transport excellently and serve stably.
• Enclosure: The enclosure is made of ABS + PC high-quality material, which has a high-temperature-resistant function to protect your laptop from overheating
• Battery Buckle: The battery buckle is closely connected to the laptop, and the metal interface is stably powered

93FTF / DY9NT / 093FTF Battery Compatibility Laptop Model List:

1. Compatible Laptop Model List (Comprehensive)

Dell Series	Specific Model Suffixes (High-Volume Searchable Variants)
Precision Mobile	3520, 3530:Precision 15 3520 Workstation, Precision 3530 i7-8750H, Mobile Workstation i5-7300HQ, i7-7700HQ, Xeon E3-1505M
Latitude 14 5000	5480, 5488, 5490, 5491, 5495: Latitude 14-5490 Business Series, 5480-H6R7Y, Latitude 5491 (High-Performance 45W CPU)
Latitude 15 5000	5580, 5590, 5591: Latitude 5591 (i7-8850H / NVIDIA MX130) Latitude 15-5580, 5590-K7X9V, 5591 Performance
Latitude 12 5000	5280, 5288, 5290: Latitude 12-5280, 5290 Ultrabook, (Verify internal space; usually fits M.2 configurations)
⚠️ PERFORMANCE NOTE	93FTF (51Wh) is the "Standard Performance" choice for the Precision 3520.
Visual Check	This is a Medium Internal Plate. Dimensions: Approx. 198mm x 98mm.

2. 93FTF / DY9NT / 093FTF Battery Compatible Part Numbers (P/N List)

• • Dell Spare Numbers: 93FTF, 093FTF, DY9NT, 0DY9NT, GJKNX (High Cap Ref), GD1JP
  • Alternative Codes: 5YHR7, 451-BBZG, 451-BBZE, F0VGM, 2P672
  • Regulatory Codes: P72G, P72G001, P60F, P60F001, P27S, P27S001
  • Engineering Code: YU10300-16001, 312-1163 (Internal architecture)

Why Choose HTJ 93FTF Battery?

• Workstation-Grade Stability:
  The Precision 3520 is a power-hungry workstation. HTJ’s 93FTF is engineered to handle the high-current draw of i7 processors and discrete Quadro graphics, ensuring no system throttling or random shutdowns during rendering or heavy multitasking.
• 4V High-Density Power:
  We use premium Lithium-polymer cells that maintain a flat 11.4V discharge curve. This ensures your Latitude or Precision stays at full clock speed for longer, even when the battery percentage drops below 30%.
• Heat-Shielded Polymer Construction:
  Internal workstation batteries are located near high-heat components. HTJ uses thermal-stable casing materials to prevent the “Battery Swelling” that can lead to trackpad failure or chassis warping in the Latitude 5490/5580 series.
• Full SMBus Integration:
  Our 93FTF chipset is programmed with the latest Dell Power Management handshake. This provides 100% accuracy for BIOS health checks, Windows “Time Remaining” estimates, and full support for Dell ExpressCharge technology.

How to Install Your New 93FTF Battery？

The Dell 93FTF is an internal battery. A Phillips #00 screwdriver is required for installation.

⚠️ Pre-Installation Safety Check:

• Static Safety: Discharge your body’s static electricity by touching a metal surface.
• Power Off: Ensure the laptop is completely shut down, and the charger is unplugged.

93FTF Battery Step-by-Step Installation Guide:

1. Open Chassis: Unscrew the screws on the bottom panel of your Latitude or Precision.
2. Cable Removal: Carefully unplug the battery connector from the motherboard. Do not pull on the wires.
3. Unscrew Battery: Remove the screws securing the 51Wh battery to the laptop frame.
4. Install HTJ 93FTF: Place the new battery into the bay and tighten the securing screws.
5. Reconnect: Firmly plug the battery cable into the motherboard slot.
6. Close & Sync: Reattach the bottom cover. Plug in your AC adapter and charge to 100% before your first mobile session.

💡 Pro Tip (Optimizing Lifespan):

To maximize the life of your 51Wh battery:

1. Avoid keeping the laptop at 100% charge 24/7 if using it as a desktop replacement.
2. Use the Dell Power Manager app to set a custom charging limit (e.g., stop charging at 80%) to significantly extend the lifespan of the cell chemistry.

FAQ (Frequently Asked Questions)

Q: Is 93FTF the same as GJKNX?
A: They fit the same laptops, but 93FTF is 51Wh (3-cell), and GJKNX is 68Wh (4-cell). The GJKNX is physically longer. If your laptop has space, the 68Wh is an upgrade, but the 93FTF is the direct replacement for standard mid-tier builds.

Q: Will this fit if I have a 2.5″ Hard Drive?
A: Yes. The 51Wh 93FTF and 42Wh D4CMT are both “short” enough to accommodate a 2.5″ SATA drive bay in the Latitude 5480/5490 series.

Q: My battery says 11.4V, but yours is 11.1V. Is that okay?
A: Yes. 11.1V and 11.4V are nominal ratings for 3-cell polymer batteries and are 100% cross-compatible in these Dell models.

Q: My current battery is a GJKNX (68Wh). Can I use this 93FTF (51Wh)? A: Yes, it is physically shorter, so it will fit perfectly in the screw mounts. You would use the 93FTF if you are adding a 2.5″ SATA hard drive to your Precision 3520, as the 68Wh GJKNX is too long to allow for a second drive.

Q: Is the 93FTF better than the 42Wh D4CMT? A: Yes. The 93FTF provides about 20% more runtime (51Wh vs 42Wh) while occupying nearly the same footprint. It is the ideal “balanced” upgrade for Latitude 5490 users who want more power without moving to the bulky 4-cell version.

Q: Why does my Precision 3520 get so hot near the battery? A: The 3520 is a workstation with high-performance graphics. The HTJ 93FTF is built with heat-resistant internal separators to ensure that the warmth from the CPU/GPU doesn’t cause the battery cells to degrade or swell over time.

Q: Do I need a different cable for the 93FTF? A: No. The 51Wh 93FTF, 42Wh D4CMT, and 68Wh GJKNX all use the same 8-pin battery connector cable. You can reuse your original Latitude/Precision cable.

Laptop Maintenance Tips:

1. New battery: For using a new battery, you’d better try a few cycles of discharging to 5%. then charging up to 95%. So that it can be activated completely
2. Overuse: Do not always run a battery to 0%, as this would shorten its usage life.
3. Charging sequence: When charging, first install the battery, then turn on the power. When fully charged, first cut off the power, then pull the power plug.
4. Long-term storage: Please store the unused battery fully charged. (Charge it once a month.) Do not store at low power to prevent reducing the lifespan of a battery
5. Charger: Do not replace the laptop adapter casually. If the original adapter cannot be applied due to malfunction or damage, please replace the models so as not to reduce the service life of the battery due to incompatibility.
