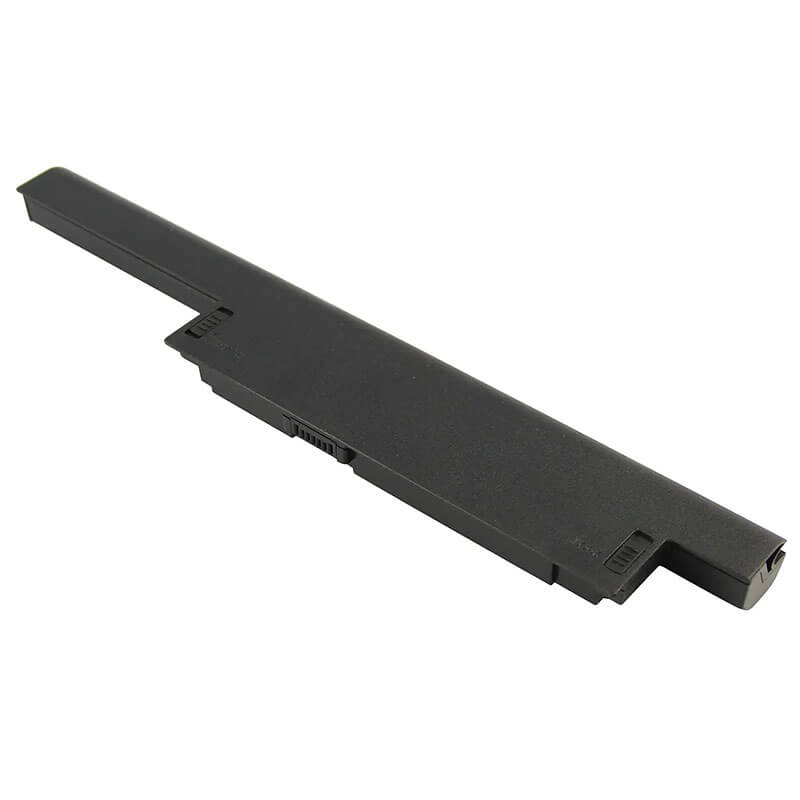

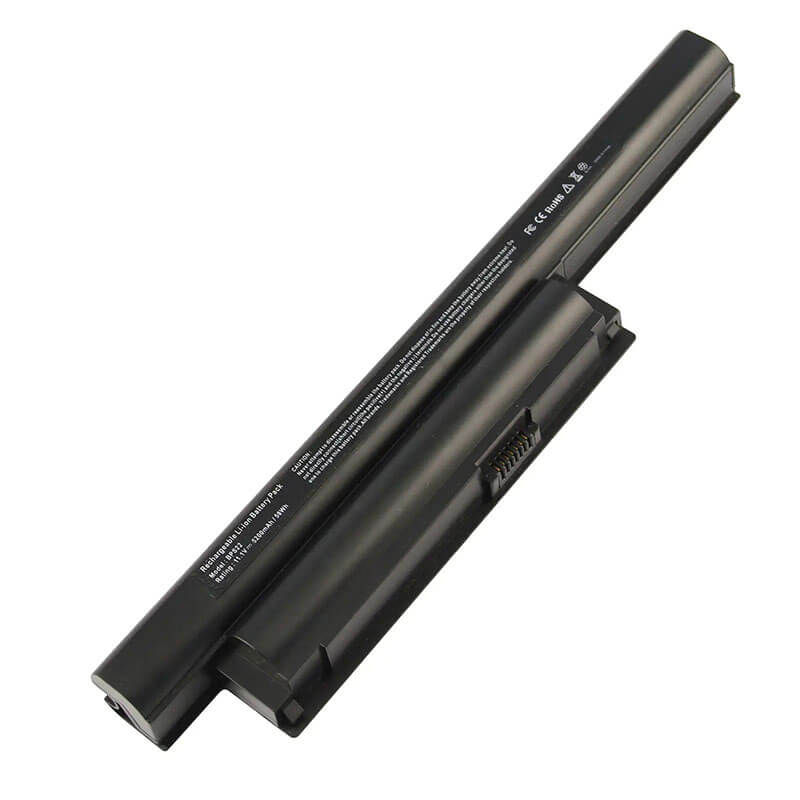

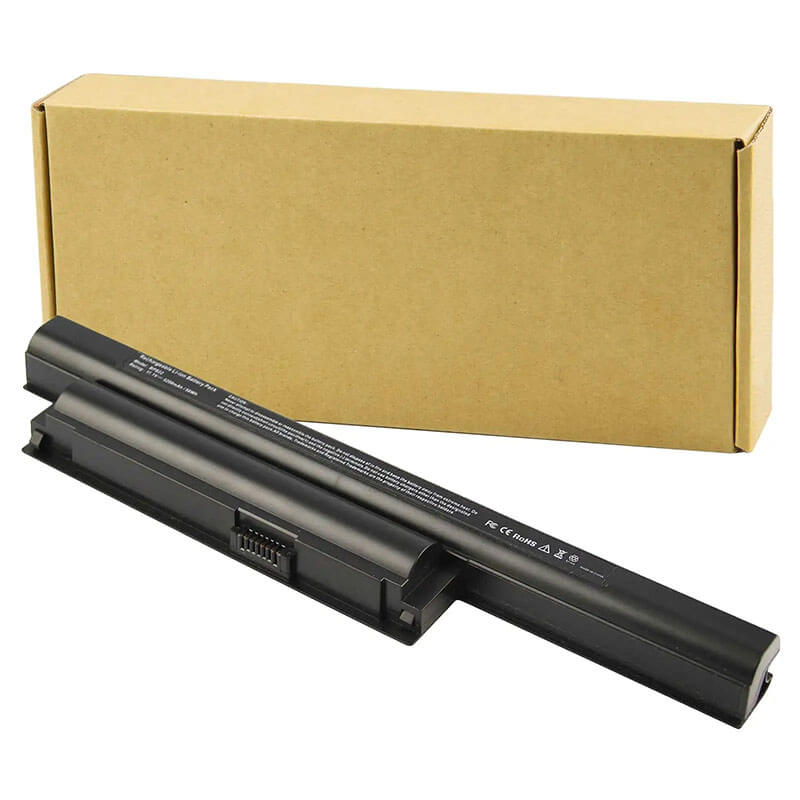

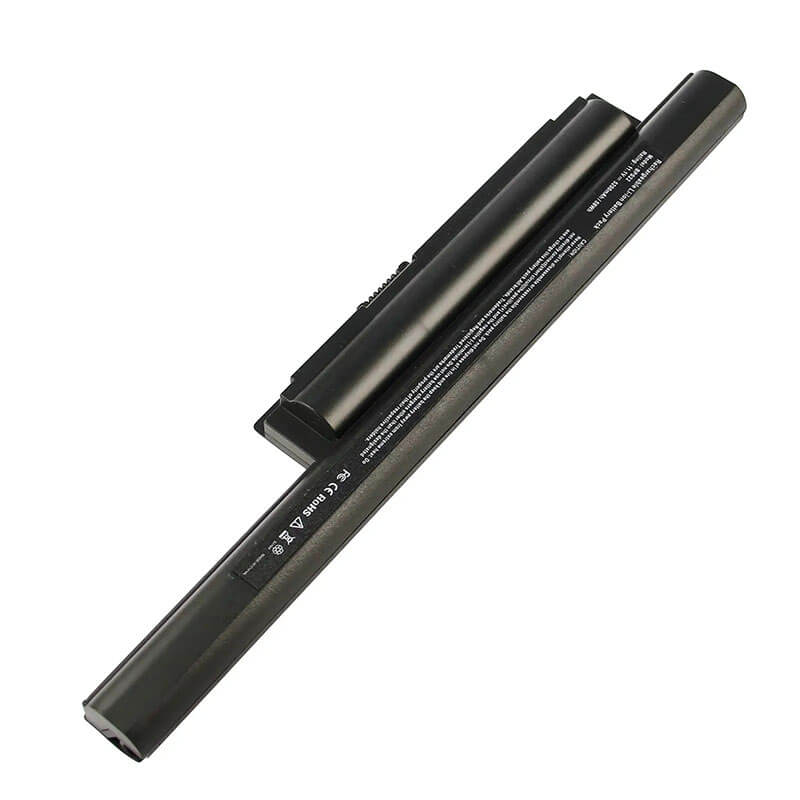

VGP-BPS22 Battery for Sony Vaio VPC-EA EB EC EE EF Series | 11.1V 5200mAh 58Wh 6-Cell – HTJ
- Model Numbers: VGP-BPS22 Battery
- Battery Type: Lithium-ion (Grade A+ High-Density Cells)
- Voltage: 11.1V (Fully compatible with 10.8V)
- Capacity: 5200mAh / 58Wh
- Cells: 6-Cell
- Connector: External Snap-in Interface
- Condition: 100% Brand New from Factory
- Life Cycle: 600 – 1000 recharge cycles
- Multiple Protection: Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI
- Color: Black
- Certifications: UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133
- OEM/ODM: Yes(Accepted)
- Warranty: 18 Months After Sales, 24/7 Email Support.
- Product Dimensions: 10.75 x 2 x 0.75 inches
- Item Weight: 10. 8 ounces
VGP-BPS22 Battery for Sony Vaio VPC-EA EB EC EE EF Series | 11.1V 5200mAh 58Wh 6-Cell
Detailed Product Specifications and Features:
Core Technical Parameters:
| Property | Specification |
|---|---|
| Model Numbers | VGP-BPS22 Battery |
| Battery Type | Lithium-ion (Grade A+ High-Density Cells) |
| Voltage | 11.1V (Fully compatible with 10.8V) |
| Capacity | 5200mAh / 58Wh |
| Cells | 6-Cell |
| Connector | External Snap-in Interface |
| Condition | 100% Brand New from Factory |
| Life Cycle | 600 - 1000 recharge cycles |
| Multiple Protection | Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI |
| Color | Black |
| Certifications | UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133 |
| OEM/ODM | Yes(Accepted) |
| Warranty | 18 Months After Sales, 24/7 Email Support. |
| Product Dimensions | 10.75 x 2 x 0.75 inches |
| Item Weight | 10.8 ounces |
Technical Note:
Design Note: The VGP-BPS22 is an external 6-cell battery.
Upgrade Note: This 5200mAh/58Wh version provides significant runtime improvement over the original 3500mAh or 4400mAh batteries.
Compatibility Note: It is functionally interchangeable with VGP-BPS22A and VGP-BPL22.
Precision Fit: Specifically designed for the “curved” battery bay of the early VPC-E series.
Important: No tools required; fits into the rear spine of the laptop with a dual-latch locking system.
Product Features:
- Battery Newest Premium Grade Cells
- Best Circuit Board
- Multiple command chip control, keep the battery stable charge and discharge;
- Over-charger protection and discharger protection, short-circuit protection, ensure fast charges and low power consumption
- Easy & Quick Installation
- Our battery is 100% compatible with the original battery and meets
- CE/FCC/ROHS/UL-certified standards. It is 100% new from the manufacturer and can support up to 1000 recharge cycles over the life of the battery
- Power Interface: Gold-plated connector points to ensure current transport excellently and serve stably.
- Enclosure: The enclosure is made of ABS + PC high-quality material, which has a high-temperature-resistant function to protect your laptop from overheating
- Battery Buckle: The battery buckle is closely connected to the laptop, and the metal interface is stably powered
VGP-BPS22 Battery Battery Compatibility Laptop Model List:
1. Compatible Laptop Model List (Comprehensive)
| Sony Series | Specific Model Prefixes & PCG Chassis Codes |
|---|---|
| Vaio VPC-EB Series | VPCEB Series: VPCEB1E1E, VPCEB11FM, VPCEB33FM, VPCEB47GM, VPCEB15FG, VPCEB17FG, VPCEB190X, VPCEB33FM, VPCEB47GM Chassis Codes: PCG-71211L, PCG-71211M, PCG-71211W, PCG-71212L, PCG-71213L, PCG-71215L, PCG-71216L |
| Vaio VPC-EA Series | VPCEA Series: VPCEA12EN, VPCEA15FG, VPCEA25FG, VPCEA3AFX, VPCEA47EC Chassis Codes: PCG-61211L, PCG-61212L, PCG-61311L |
| Vaio VPC-EC Series | VPCEC Series: VPCEC25FG, VPCEC1S1E, VPCEC3S1E Chassis Codes: PCG-91111L, PCG-91112L |
| Vaio VPC-EE/EF/EL | VPCEE Series (AMD), VPCEF Series (AMD), VPCEL Series Chassis Codes: PCG-61511L, PCG-61611L, PCG-71411L, PCG-71511L |
| ⚠️ Absolute Incompatibility | NOT FOR: Vaio SVE15 or SVE14 series (Uses VGP-BPS26). NOT FOR: Vaio VGN series (Uses VGP-BPS13 or BPS9). |
| Visual Check | Fits models where the battery is a straight bar and the connector pins are recessed at the far end (NOT in the middle). |
2. VGP-BPS22 Battery Compatible Part Numbers (P/N List)
-
- Primary Codes: VGP-BPS22, VGP-BPS22A, VGP-BPS22/B
- High-Capacity Code: VGP-BPL22
- Engineering Codes: 1-853-704-11, 1-853-705-11, 1-853-706-11
- Alternative Code: VGP-BPS26 (BPS26 is the updated version of BPS22 and is backwards compatible with most VPC-EB systems).
Why Choose HTJ VGP-BPS22 5200mAh Battery?
- High-Density 58Wh Capacity:
The Vaio VPC-EB series features large 15.6″ displays that consume significant power. Our 5200mAh upgrade uses premium cells to provide the surplus energy needed for modern Windows 10/11 environments, which are more demanding than the original Windows 7 OS. - VPC-Specific BIOS Logic:
Older Sony VPC models can be picky about non-OEM batteries. Our VGP-BPS22 features a fully decoded firmware chip that ensures the laptop recognizes the battery immediately, allowing for full-speed charging and accurate “time remaining” estimates. - Reinforced Rail Alignment:
The BPS22 relies on precise guide rails to slide into the chassis. HTJ housings are injection-molded with high-tensile ABS plastic to ensure the battery doesn’t “wobble” or lose connection, a common flaw in cheaper generic replacements. - 18-Month Factory-Direct Warranty:
Avoid stocks that have been sitting in a warehouse for years. We manufacture in small batches to ensure the Lithium-ion chemistry remains fresh. We back every 5200mAh unit with a full 18-month warranty.
How to Install Your New VGP-BPS22 Battery?
The Sony VGP-BPS22 is an external snap-in battery. Replacing it is a tool-less process that can be completed in seconds, but following the correct sequence ensures your laptop’s sensitive power management circuit is protected.
⚠️ Crucial Safety Preparation
- Shutdown: Save all work and perform a complete Windows shutdown. Disconnect the AC power adapter.
- Surface: Place the laptop upside down on a soft, non-abrasive surface (like a clean towel) to prevent scratching the lid.
- Static Safety: Touch a grounded metal object before handling the battery to discharge any static electricity from your body.
VGP-BPS22 Battery Step-by-Step Installation Guide:
- Unlock the Safety Latch: Locate the manual “LOCK” switch on the bottom of the laptop. Slide it to the Unlocked (red or open icon) position.
- Release the Old Battery: Slide and hold the spring-loaded “RELEASE” lever with one hand.
- Remove: While holding the release lever, use your other hand to gently slide the old battery out of the bay horizontally.
- Align the New Battery: Align the HTJ VGP-BPS22 with the side guide rails of the battery bay. Ensure the connector pins on the battery are facing the laptop’s internal connector.
- Insert and Click: Slide the battery firmly into the bay until you hear a distinct “click,” indicating it is fully seated.
- Secure the Lock: Slide the manual “LOCK” switch back to the Locked position. (This is critical to prevent the battery from shifting and causing a sudden power loss during use).
- Final Calibration: Plug in your AC adapter and charge the battery to 100% without interruption. Once full, disconnect the charger and use the laptop until it reaches 5%, then recharge to 100% to calibrate the Windows fuel gauge.
💡 Pro Tip:
If your Sony Vaio does not recognize the battery or shows a “Plugged in, not charging” message, it may be due to a static charge buildup. Try a “Static Reset”: Remove the battery and charger, hold the power button down for 60 seconds, then reconnect the battery and try again.
FAQ (Frequently Asked Questions)
Q: My laptop says “PCG-71211M” on the bottom. Is this the right battery?
A: Yes! PCG-71211M is the chassis code for several European Vaio EB models, including the VPCEB1E1E. This VGP-BPS22 is the 100% correct match.
Q: Can I use the VGP-BPS26 in my VPC-EB laptop?
A: Usually, yes, as the BPS26 is the successor. However, the BPS22 is the original designated part and is often better for BIOS compatibility on older 2010–2011 models.
Q: Is this 11.1V battery safe if my original was 10.8V?
A: Yes. These are functionally identical voltage ratings for a 3-cell serial architecture. It is 100% safe for your laptop and the original Sony charger.
Q: My laptop label says PCG-71211M, but the battery says VGP-BPS22. Is this a match?
A: Yes. PCG-71211M is the chassis code for the European Vaio VPCEB1E1E. The VGP-BPS22 is the standard battery designated for this chassis.
Q: Can I use this 5200mAh battery if my original was 3500mAh or 4400mAh?
A: Absolutely. 5200mAh (58Wh) refers to the energy density of the Grade A+ cells inside. It will provide a longer runtime (up to 20-30% more) but has the same dimensions as your lower-capacity original battery.
Q: Why do some sites say I need a VGP-BPS26?
A: The BPS26 is the newer version of the BPS22. Sony made them cross-compatible. Our HTJ VGP-BPS22 features an updated communication chip that covers the requirements of both BPS22 and BPS26 systems.
Q: What if my Sony Vaio shows a “Battery not recognized” message?
A: This is rare with our decoded chips. However, if it happens, it’s usually due to Sony’s “ISBM” software. Simply perform a Static Discharge (remove battery/charger and hold the power button for 60s) to reset the handshake.
Laptop Maintenance Tips:
- New battery: For using a new battery, you’d better try a few cycles of discharging to 5%. then charging up to 95%. So that it can be activated completely
- Overuse: Do not always run a battery to 0%; this would shorten its usage life.
- Charging sequence: When charging, first install the battery, then turn on the power. When fully charged, first cut off the power, then pull the power plug.
- Long-term storage: Please store the unused battery fully charged. (Charge it once a month.) Do not store at low power to prevent reducing the lifespan of a battery
- Charger: Do not replace the laptop adapter casually. If the original adapter cannot be applied due to malfunction or damage, please replace the models so as not to reduce the service life of the battery due to incompatibility.
