EB-BT585ABE Battery for Samsung Galaxy Tab A 10.1 2016 SM-T580 SM-T585 | 3.8V 7300mAh 27.74Wh – HT...

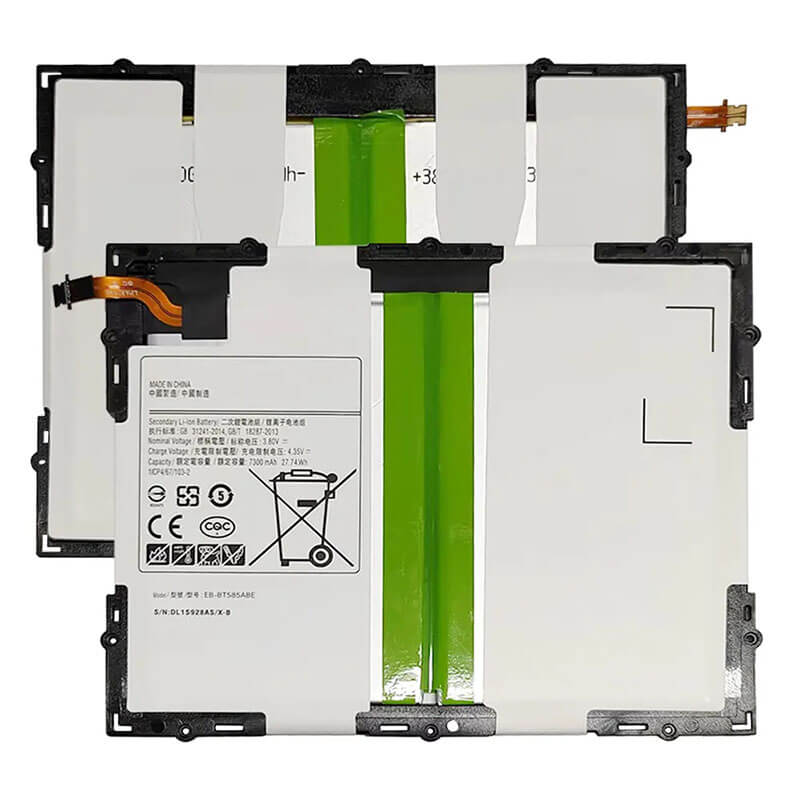

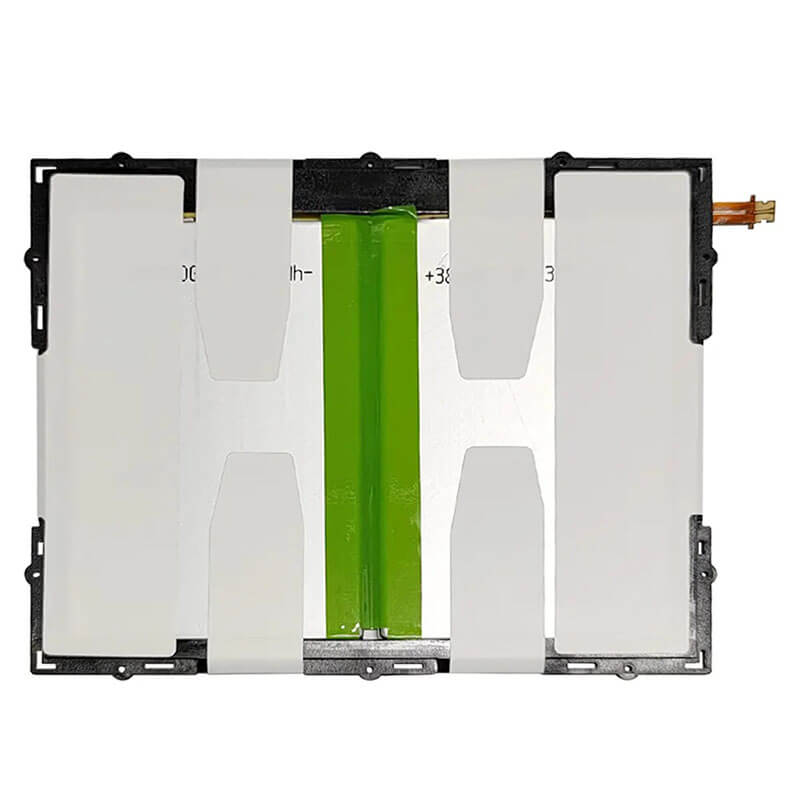

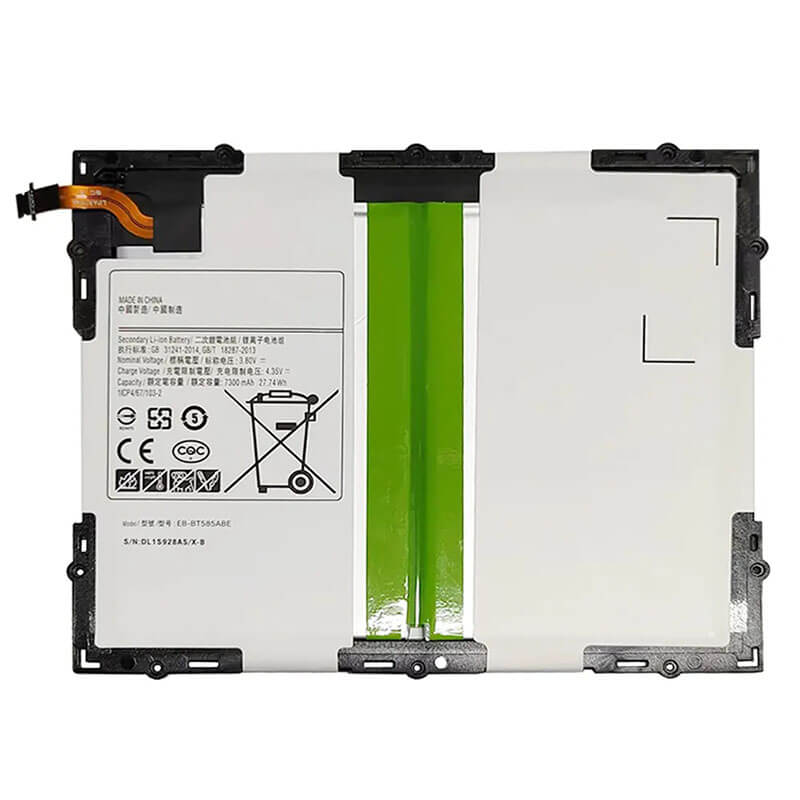

EB-BT585ABE Battery for Samsung Galaxy Tab A 10.1 2016 SM-T580 SM-T585 | 3.8V 7300mAh 27.74Wh
Detailed Product Specifications and Features:
Core Technical Parameters:
| Property | Specification |
|---|---|
| Model Numbers | EB-BT585ABE Battery |
| Battery Type | Li-ion Polymer (High-Density Grade A+ Cells) |
| Voltage | 3.8V (Charge Limit: 4.35V) |
| Capacity | 7300mAh / 27.74Wh |

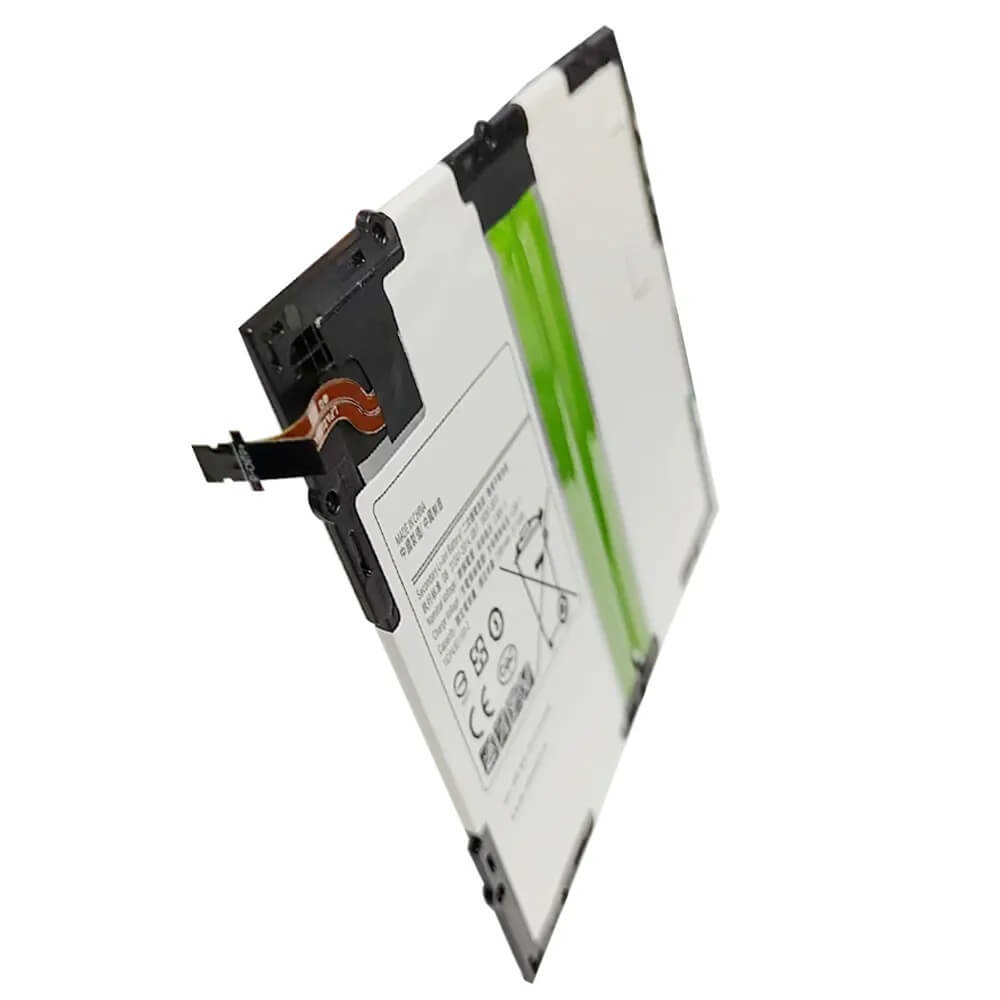

| Connector | Multi-Pin Flex Cable Interface |
| Condition | 100% Brand New from Factory |
| Life Cycle | 600 - 1000 recharge cycles |
| Multiple Protection | Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI |
| Color | Black |
| Certifications | UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133 |
| OEM/ODM | Yes(Accepted) |
| Warranty | 18 Months After Sales, 24/7 Email Support. |
| Product Dimensions | 10.55 x 4.92 x 0.94 inches |
| Item Weight | 0.141 ounces |
Technical Note:
Design Note: The EB-BT585ABE is a high-capacity internal tablet battery.
Compatibility Note: Specifically designed for the 2016 revision of the Galaxy Tab A 10.1. It is not interchangeable with the 2019 (SM-T510) version.

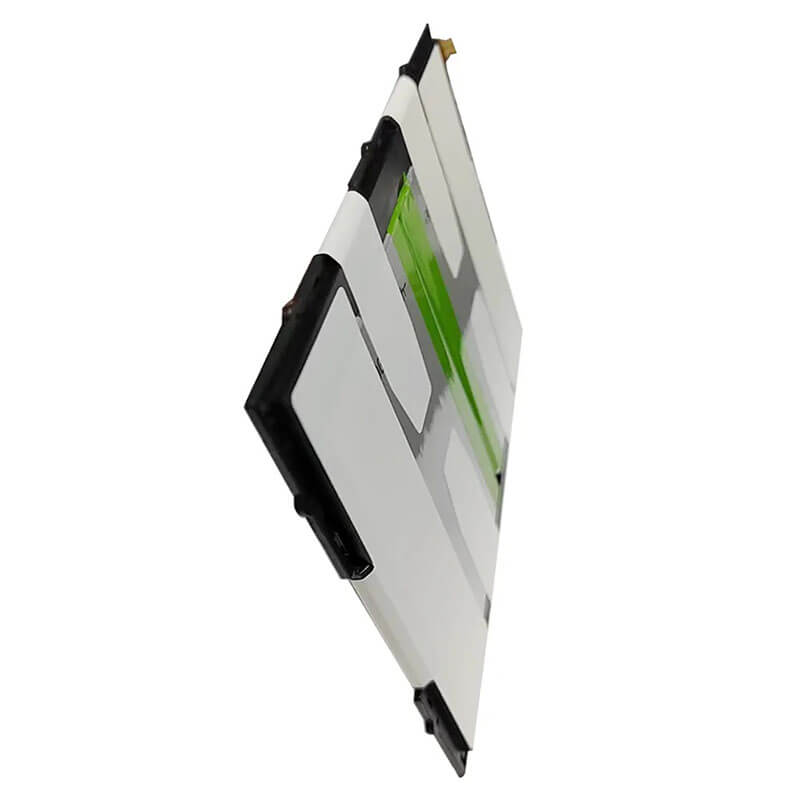

Physical Note: The ultra-slim polymer architecture allows for a massive 7300mAh capacity while maintaining the tablet’s thin profile.
Important: Internal installation requires opening the tablet’s adhesive-sealed or clip-secured back cover; professional installation or specialized opening tools are recommended.
Product Features:
- Battery Newest Premium Grade Cells
- Best Circuit Board
- Multiple command chip control, keep the battery stable charge and discharge;
- Over-charger protection and discharger protection, short-circuit protection, ensure fast charges and low power consumption
- Easy & Quick Installation
- Our battery is 100% compatible with the original battery and meets
- CE/FCC/ROHS/UL-certified standards. It is 100% new from the manufacturer and can support up to 1000 recharge cycles over the life of the battery
- Power Interface: Gold-plated connector points to ensure current transport excellently and serve stably.
- Enclosure: The enclosure is made of ABS + PC high-quality material, which has a high-temperature-resistant function to protect your laptop from overheating
- Battery Buckle: The battery buckle is closely connected to the laptop, and the metal interface is stably powered
EB-BT585ABE Battery Battery Compatibility Laptop Model List:
1. Compatible Laptop Model List (Comprehensive
| Category | Specific Models & Machine Types |
|---|---|
| Galaxy Tab A 10.1 (2016) Wi-Fi | SM-T580 Series:SM-T580NZKAXAR, SM-T580NZWAXAR, SM-T580NZKMXAR |
| Galaxy Tab A 10.1 (2016) 4G/LTE | SM-T585 / SM-T587 Series:SM-T585NZKADBT, SM-T587P (Sprint/T-Mobile US) |
| Galaxy Tab A 10.1 with S-Pen | SM-P580 (Wi-Fi) / SM-P585 (LTE):(Standard 7300mAh high-density internal architecture) |
| ⚠️ Absolute Incompatibility | NOT FOR: Galaxy Tab A 10.1 (2019) SM-T510/T515. NOT FOR: Galaxy Tab 4 10.1 (SM-T530/T535). |
| Visual Check | Fits models where the Home Button is physical and the charging port is Micro-USB (not USB-C). |
2. EB-BT585ABE Battery Compatible Part Numbers (P/N List)
-
- EB-BT585ABE (Primary Marketing ID)
- EB-BT585ABA (Interchangeable Variant)
- GH43-04621A (Samsung Service Part Number)
Why Choose HTJ EB-BT585ABE 7300mAh Battery?
- True 7300mAh Endurance: The Galaxy Tab A 10.1 is a favorite for long-form video and gaming. We use Grade A+ high-density polymer cells to match the original 7300mAh capacity, ensuring your tablet returns to its factory-rated 12-13 hours of active screen time.
- Smart BMS Protection: Tablet batteries are often left on chargers for extended periods (especially in POS or display kiosks). Our Smart-BMS (Battery Management System) prevents overcharging, voltage instability, and short circuits, protecting the tablet’s logic board from thermal damage.
- Zero-Swelling Polymer Architecture: Tablet screens are very sensitive to internal pressure. HTJ cells use premium vacuum-sealed aluminum laminate to prevent cell gas buildup, ensuring the battery remains flat and does not cause “white spots” or screen lifting on your OLED/LCD.
- 18-Month Factory-Direct Warranty: As a direct manufacturer, we eliminate the uncertainty of third-party resellers. Every battery is tested for capacity consistency and connector signal integrity before shipping, backed by a full 18-month replacement warranty.
How to Install Your New EB-BT585ABE Battery?
Replacing an internal tablet battery requires a steady hand and patience.
⚠️ Crucial Safety Preparation
- Shutdown: Power off the tablet and remove any SD or SIM cards.
- Safety Gear: Use plastic prying tools to avoid shorting components.
- Tools: Plastic spudger, suction cup, and a small Phillips screwdriver.
Step-by-Step Installation Guide:
- Open the Tablet: Use a suction cup and plastic prying tool to release the clips holding the back cover to the frame. Start at the corners and work your way around.
- Expose the Battery: Once the back cover is removed, you will see the large internal battery.
- Disconnect the Flex Cable: Locate the multi-pin battery connector. Use a plastic spudger to gently lift the connector vertically out of its socket. Do not use metal tools.
- Remove Screws: Unscrew the Phillips screws securing the battery to the chassis.
- Swap the Battery: Lift out the old unit and place the HTJ EB-BT585ABE in the alignment tabs.
- Secure and Reconnect: Replace the screws and press the flex cable connector firmly into the motherboard socket until it clicks.
- Test Before Closing: Power on the tablet to ensure it recognizes the battery before snapping the back cover back on.
- Calibration: Charge to 100% and then allow it to discharge to 5% once to sync the Android battery meter.
💡 Pro Tip:
If the back cover is difficult to remove, applying light heat (from a hair dryer or heat pad) to the edges can help soften any light adhesive used on specific regional variants.
FAQ (Frequently Asked Questions)
Q: My original battery says 7300mAh, but my tablet feels slow. Will a new battery help?
A: Yes. When Li-ion batteries age, they can struggle to provide peak voltage during high-performance tasks, causing the OS to “throttle” the processor. A fresh HTJ battery provides stable peak voltage to maintain full performance.
Q: Why is my tablet charging slowly with the new battery?
A: Most new tablet batteries ship at a 40-50% storage charge. For the first 1-2 cycles, we recommend using the original Samsung 2.0A charger to ensure the BMS calibrates properly.
Q: My tablet has a stylus (S-Pen). Is this the correct battery?
A: Yes. The EB-BT585ABE is used in both the standard SM-T580 and the S-Pen-enabled SM-P580 models. The 7300mAh capacity and 3.8V architecture are identical across both versions.
Q: Why is my tablet taking longer to charge with the new battery?
A: High-capacity 7300mAh batteries require a steady current. Ensure you are using a 5V/2.0A (10W) wall adapter. If you are charging via a laptop USB port, it may take significantly longer to reach 100%.
Q: Can I use this to replace the battery in the 2019 Galaxy Tab A 10.1?
A: No. The 2019 model (SM-T510) uses a smaller 6150mAh battery with a different physical connector. Please check your model number; if it is SM-T510 or SM-T515, this battery will not fit.
Laptop Maintenance Tips:
- New battery: For using a new battery, you’d better try a few cycles of discharging to 5%. then charging up to 95%. So that it can be activated completely
- Overuse: Do not always run a battery to 0%; this would shorten its usage life.
- Charging sequence: When charging, first install the battery, then turn on the power. When fully charged, first cut off the power, then pull the power plug.
- Long-term storage: Please store the unused battery fully charged. (Charge it once a month.) Do not store at low power to prevent reducing the lifespan of a battery
- Charger: Do not replace the laptop adapter casually. If the original adapter cannot be applied due to malfunction or damage, please replace the models so as not to reduce the service life of the battery due to incompatibility.
