JC04 HSTNN-DB8E Battery for HP 15-bs 15-bw 17-bs 250 G6 | 14.8V 2600mAh 38Wh 4-Cell – HTJ
- Model Numbers: JC04 / JC03 / HSTNN-DB8E Battery
- Battery Type: Lithium-ion (Grade A Cylindrical Cells)
- Voltage: 14.8V (Fully compatible with 14.4V / 14.6V)
- Capacity: 2600mAh / 38Wh
- Cells: 4-Cell
- Connector: Internal Integrated Multi-Pin Plug
- Condition: 100% Brand New from Factory
- Life Cycle: 600 – 1000 recharge cycles
- Multiple Protection: Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI
- Color: Black
- Certifications: UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133
- OEM/ODM: Yes(Accepted)
- Warranty: 18 Months After Sales, 24/7 Email Support.
- Product Dimensions: 11 x 4 x 3 inches
- Item Weight: 11.6 ounces
JC04 HSTNN-DB8E Battery for HP 15-bs 15-bw 17-bs 250 G6 | 14.8V 2600mAh 38Wh 4-Cell
Detailed Product Specifications and Features:
Core Technical Parameters:
| Property | Specification |
|---|---|
| Model Numbers | JC04 / JC03 / HSTNN-DB8E Battery |
| Battery Type | Lithium-ion (Grade A Cylindrical Cells) |
| Voltage | 14.8V (Fully compatible with 14.4V / 14.6V) |
| Capacity | 2600mAh / 38Wh |
| Cells | 4-Cell |
| Connector | External Snap-in |
| Condition | 100% Brand New from Factory |
| Life Cycle | 600 - 1000 recharge cycles |
| Multiple Protection | Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI |
| Color | Black |
| Certifications | UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133 |
| OEM/ODM | Yes(Accepted) |
| Warranty | 18 Months After Sales, 24/7 Email Support. |
| Product Dimensions | 11 x 4 x 3 inches |
| Item Weight | 11.6 ounces |
Technical Note:

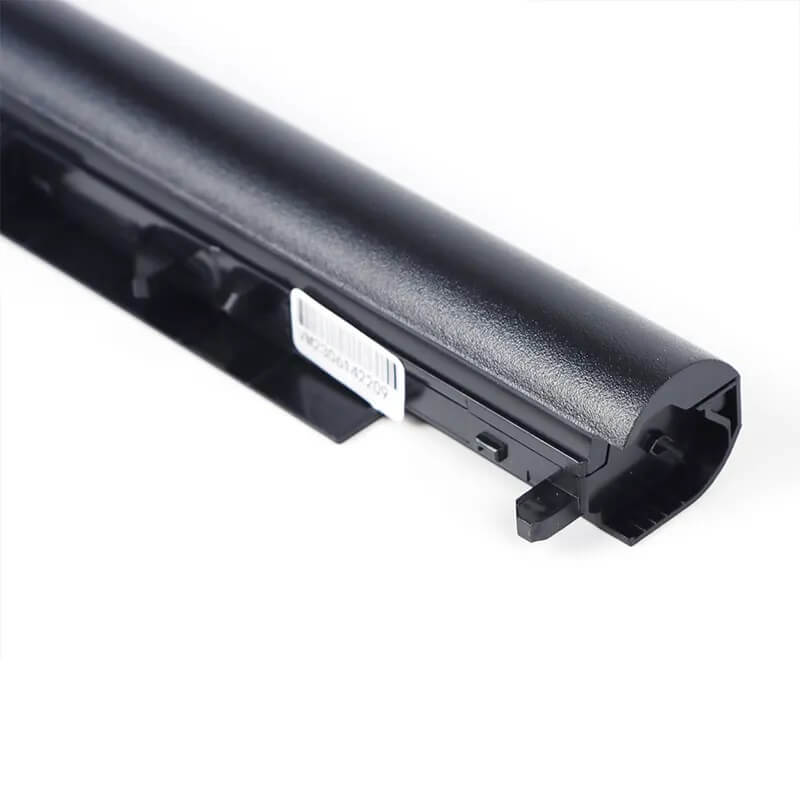

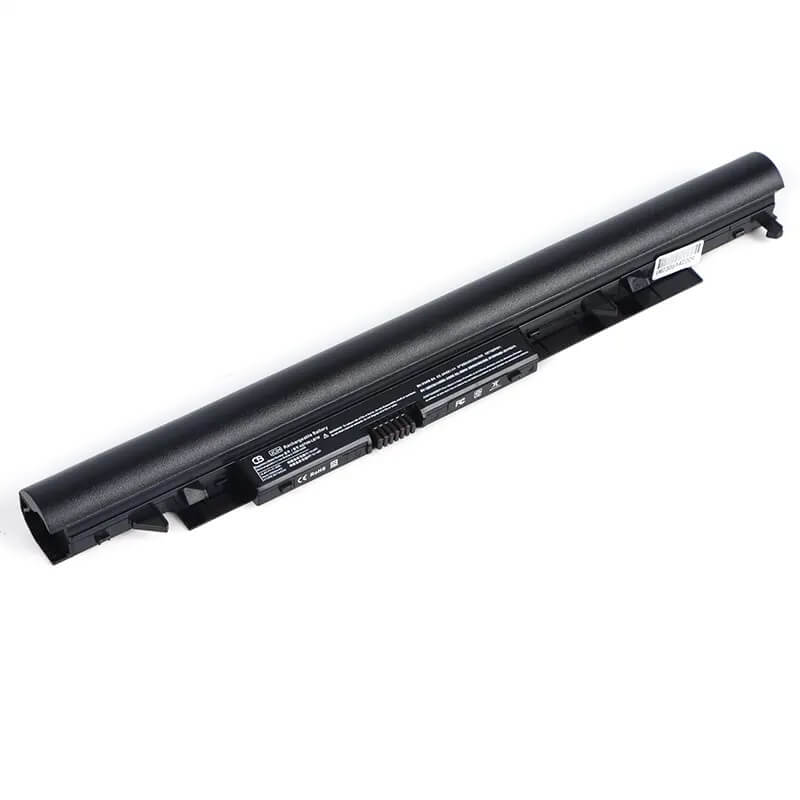

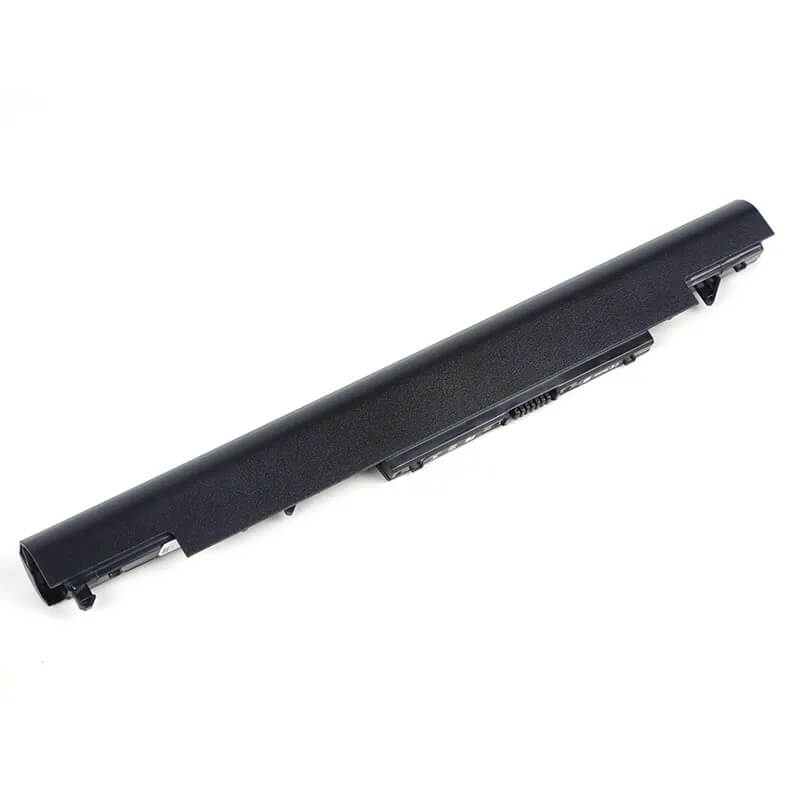

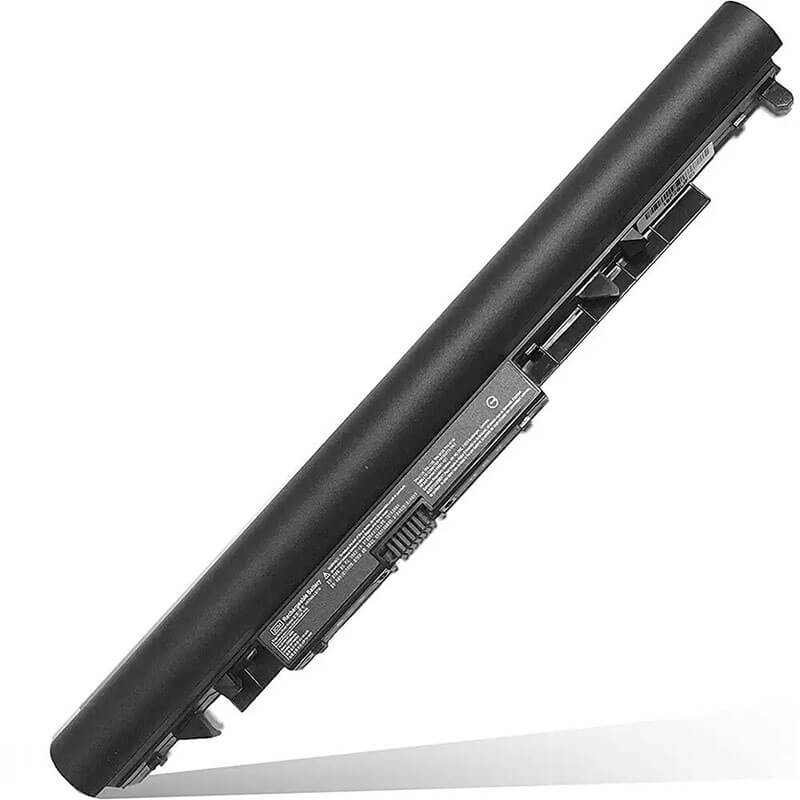

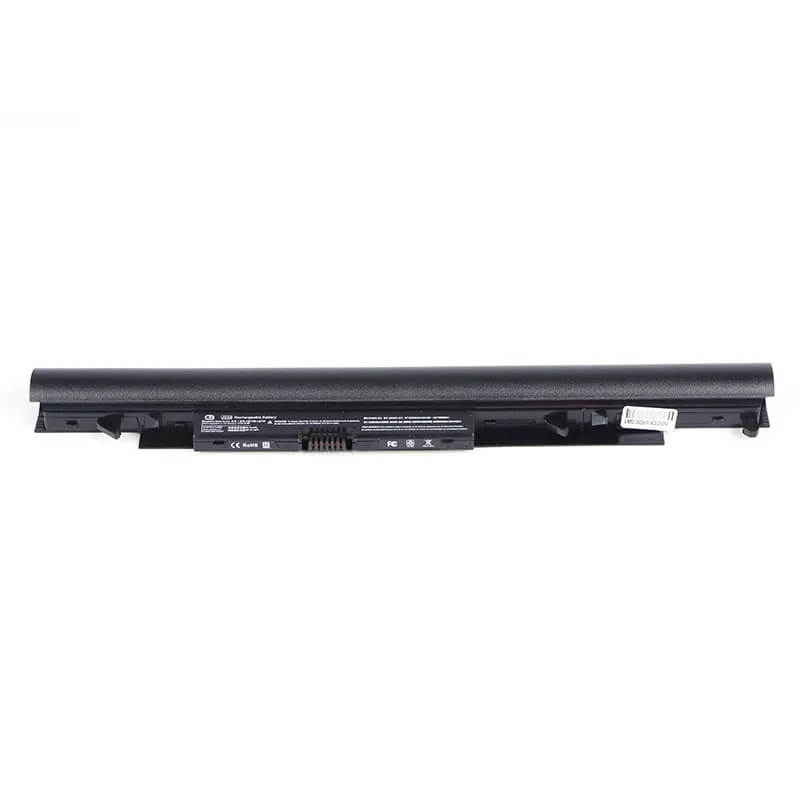

Design Note: The JC04 (HSTNN-DB8E) is an external removable battery shaped like a cylindrical rod.
Generation Alert: Specifically for HP laptops released in 2017–2018 (e.g., HP 250 G6).
Voltage Note: While original labels may show 14.6V or 14.8V, these are functionally identical.
Safety Note: Features an upgraded locking rail to prevent the battery from wobbling, a common failure point in the 15-BS chassis.
Important: Not for HP 250 G7 (which uses the internal HT03XL).
Product Features:
- Battery Newest Premium Grade Cells
- Best Circuit Board
- Multiple command chip control, keep the battery stable charge and discharge;
- Over-charger protection and discharger protection, short-circuit protection, ensure fast charges and low power consumption
- Easy & Quick Installation
- Our battery is 100% compatible with the original battery and meets
- CE/FCC/ROHS/UL-certified standards. It is 100% new from the manufacturer and can support up to 1000 recharge cycles over the life of the battery
- Power Interface: Gold-plated connector points to ensure current transport excellently and serve stably.
- Enclosure: The enclosure is made of ABS + PC high-quality material, which has a high-temperature-resistant function to protect your laptop from overheating
- Battery Buckle: The battery buckle is closely connected to the laptop, and the metal interface is stably powered
JC04 / JC03 / HSTNN-DB8E Battery Battery Compatibility Laptop Model List:
1. Compatible Laptop Model List (Comprehensive)
| Series | Specific Model Suffixes (High-Volume Searchable Variants) |
|---|---|
| HP 15-BS Series | 15-bs000 to 15-bs199: 15-bs015dx, 15-bs013dx, 15-bs113dx, 15-bs115dx, 15-bs020wm, 15-bs033cl, 15-bs060wm, 15-bs192od, 15-bs095ms, 15-bs091ms, 15-bs010ds, 15-bs168cl, 15-bs212wm, 15-bs234wm |
| HP 15-BW Series | 15-bw000 to 15-bw099: 15-bw011dx, 15-bw033wm, 15-bw053od, 15-bw008cl, 15-bw032wm, 15-bw010nr, 15-bw070nr, 15-bw028ca, 15-bw036nr, 15-bw017cl |
| HP 17-BS / 17-AK | 17-bs000 & 17-ak000: 17-bs011dx, 17-bs049dx, 17-bs153cl, 17-bs067cl, 17-ak013dx, 17-ak051nr, 17-ak004ng, 17-ak007na |
| HP 14-BS / 14-BW | 14-bs000 & 14-bw000: 14-bs014nf, 14-bw037au, 14-bw014nf |
| HP 240 / 250 G6 | Business Models: HP 240 G6, 245 G6, 246 G6, 250 G6, 255 G6, 256 G6, 258 G6 |
| HP 15g / 15q Series | 15g-br, 15g-bx, 15q-bu, 15q-by: (e.g., 15g-br000, 15q-bu000) |
| HP Pavilion 15-CC | Specific Variants: 15-cc000, 15-cc100 (Check P/N carefully) |
| ⚠️ Absolute Incompatibility | NOT FOR: HP 250 G7 (Internal HT03XL). NOT FOR: HP 15-AY/BA (External HS04). NOT FOR: Pavilion 15-AU/AW (Internal BP02XL). |
| Visual Check | This battery is a long, thick black rod that slides into the back of the laptop. It is NOT a flat plate. |
2. JC04 / JC03 / HSTNN-DB8E Battery Compatible Part Numbers (P/N List)
- HP Spare Numbers: 919700-850 (3-cell), 919701-850 (4-cell), 919681-221, 919682-121, 919682-421, 919682-831, 2LP34AA
- Regulatory Codes: HSTNN-DB8E, HSTNN-L67N, HSTNN-PB6Y, HSTNN-LB7W, HSTNN-LB7V, HSTNN-HB7X, HSTNN-H7BX
- Model Designation: JC04, JC03, JCO4, JCO3
- Chassis ID (Found on bottom cover): TPN-C129, TPN-C130, TPN-Q186, TPN-Q187, TPN-W129, TPN-W130
Why Choose HTJ JC04 Battery?
- Precision Latching Mechanism:
The HP 15-bs chassis is prone to battery “wobble,” which causes sudden power loss if the laptop is moved. HTJ’s JC04 utilizes a reinforced ABS/PC guide rail that locks into the chassis with 0.05mm precision, ensuring a consistent electrical connection even during mobile use. - High-Voltage Stability for Large Displays:
The 15-inch and 17-inch BS/BW series require high peak current for screen backlighting. HTJ uses Grade A 18650 cells with a 14.8V nominal voltage (upgradable from 14.4V). This provides a more stable power floor, extending the life of your motherboard’s VRM (Voltage Regulator Modules). - Texas Instruments (TI) Fuel Gauge Logic:
Avoid the “Plugged in, not charging” error common with generic JC04 batteries. Our TI-based communication chip ensures that Windows accurately tracks your remaining runtime and prevents the BIOS from flagging the battery as non-genuine. - 18-Month Factory-Direct Freshness:
Most JC04 batteries in the market are “New Old Stock” from 2019. HTJ manufactures in fresh monthly batches, guaranteeing that the chemical ions are at 100% activity when they reach your doorstep.
How to Install Your New JC04 HSTNN-DB8E Battery？
The HP JC04 / HSTNN-DB8E is an external snap-in battery. No tools are required.
⚠️ Crucial Safety Preparation
- Shutdown: Perform a full Windows shutdown and disconnect the AC adapter.
- Surface: Place the laptop upside down on a soft, clean surface.
JC04 Battery Step-by-Step Installation Guide:
- Unlock: Locate the battery latches on the bottom of the laptop. Slide the Lock Latch (usually on the left) to the “Unlocked” icon.
- Release & Removing: Slide and hold the Release Latch (usually on the right). While holding it, slide the old battery out horizontally from its bay.
- Inspect: Clean the 9-pin gold connector on the laptop with a dry cloth or compressed air.
- Align & Replace: Align the new HTJ JC04 battery with the guide rails.
- Insert: Push the battery firmly into the bay until you hear a clear “Click”.
- Secure: Move the Lock Latch back to the “Locked” position to prevent accidental disconnection.
- Final Calibration: Plug in the AC adapter and charge to 100%. Once full, discharge to 5% once to synchronize the Windows battery health monitor.
💡 Pro Tip:
If the battery light flashes orange after installation, perform a Static Drain: Remove the battery and charger, hold the Power Button for 30 seconds, then re-insert the battery. This clears the static charge in the charging circuit.
FAQ (Frequently Asked Questions)
Q: My laptop is an HP 250 G6. Is this the right one?
A: Yes! The 250 G6 uses the external JC04 battery. However, if you have a 250 G7, you need the internal HT03XL. Check if your battery is a “removable bar” or hidden inside.
Q: Can I use this JC04 to replace my JC03?
A: Absolutely. JC04 (4-cell) is the high-capacity version of the JC03 (3-cell). It fits in the same space but gives you 25% more runtime.
Q: My original says 14.6V, but yours is 14.8V. Is it safe?
A: Yes. These are nominal ratings for the same cell configuration. Your HP laptop will handle 14.8V safely.
Q: My laptop is an HP 15-bs060wm. Is this battery correct?
A: Yes! The 15-bs060wm is a very popular model that uses the JC04 external battery. It is 100% compatible.
Q: What is the difference between JC03 and JC04?
A: The JC03 is a 3-cell battery, and the JC04 is a 4-cell battery. They are the same physical size and fit the same laptops. Our HTJ JC04 is the 4-cell version, providing longer runtime than the original 3-cell.
Q: My original battery says 10.95V, but yours is 14.8V. Will it work?
A: Check your charger. If your laptop came with a 10.95V JC03, it is safer to use the 11.1V version. If your original battery was a 14.4V or 14.8V JC04, then this 14.8V HTJ battery is the perfect high-performance match. (HTJ offers both voltage variants; please verify your original label).
Q: How do I know if I have a 250 G6 or 250 G7?
A: Look at the battery. If you can slide it out from the back without opening the laptop, you have a G6 (uses this JC04). If the back of the laptop is one smooth piece with no removable battery, you have a G7 (uses internal HT03XL).
Laptop Maintenance Tips:
- New battery: For using a new battery, you’d better try a few cycles of discharging to 5%. then charging up to 95%. So that it can be activated completely
- Overuse: Do not always run a battery down to 0%, as this would shorten its lifespan.
- Charging sequence: When charging, first install the battery, then turn on the power. When fully charged, first cut off the power, then pull the power plug.
- Long-term storage: Please store the unused battery fully charged. (Charge it once a month.) Do not store at low power to prevent reducing the lifespan of a battery
- Charger: Do not replace the laptop adapter casually. If the original adapter cannot be used due to malfunction or damage, please replace it to avoid reducing the battery’s service life due to incompatibility.
