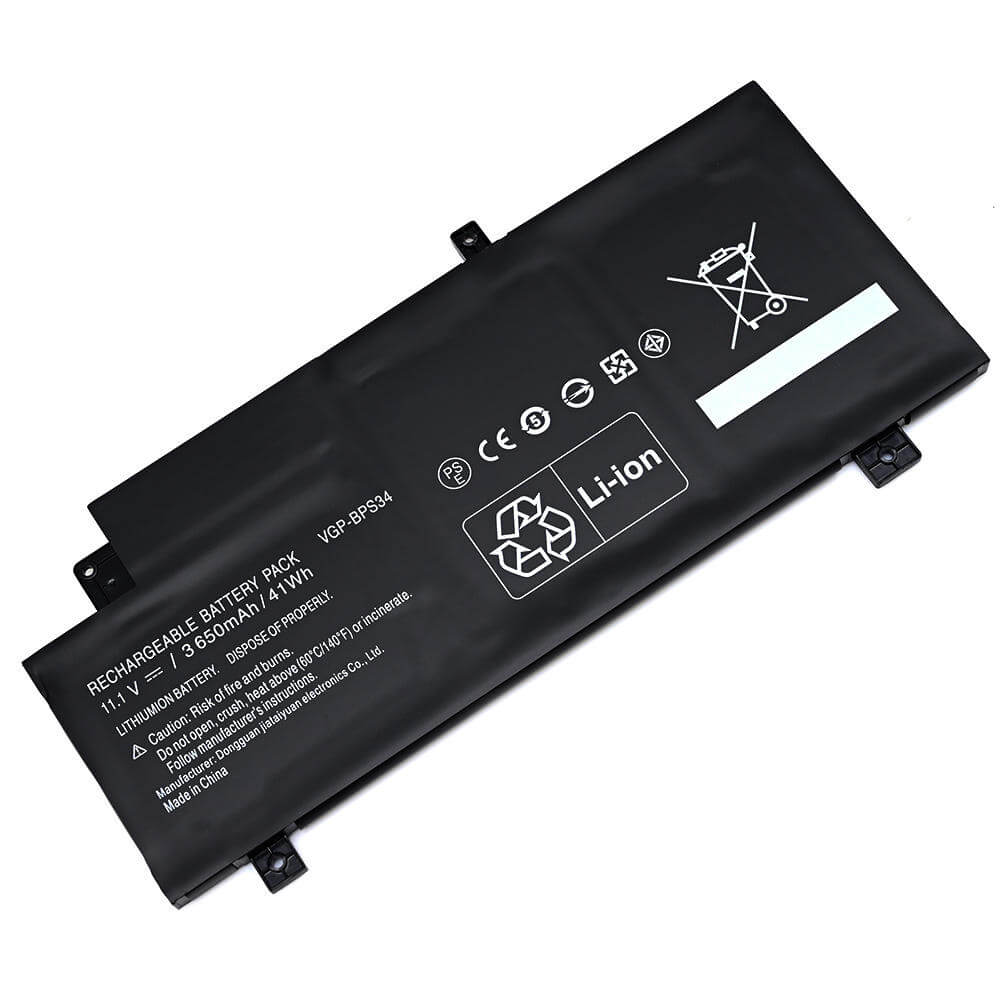

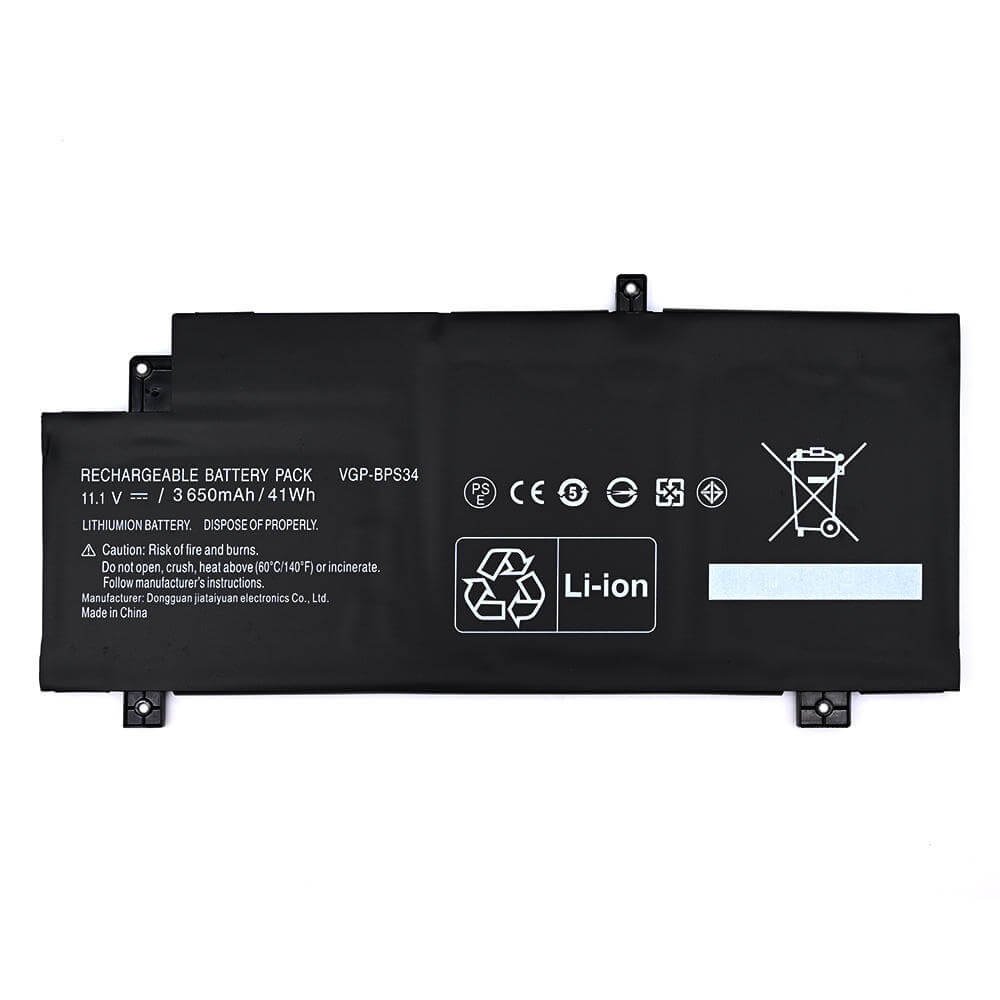

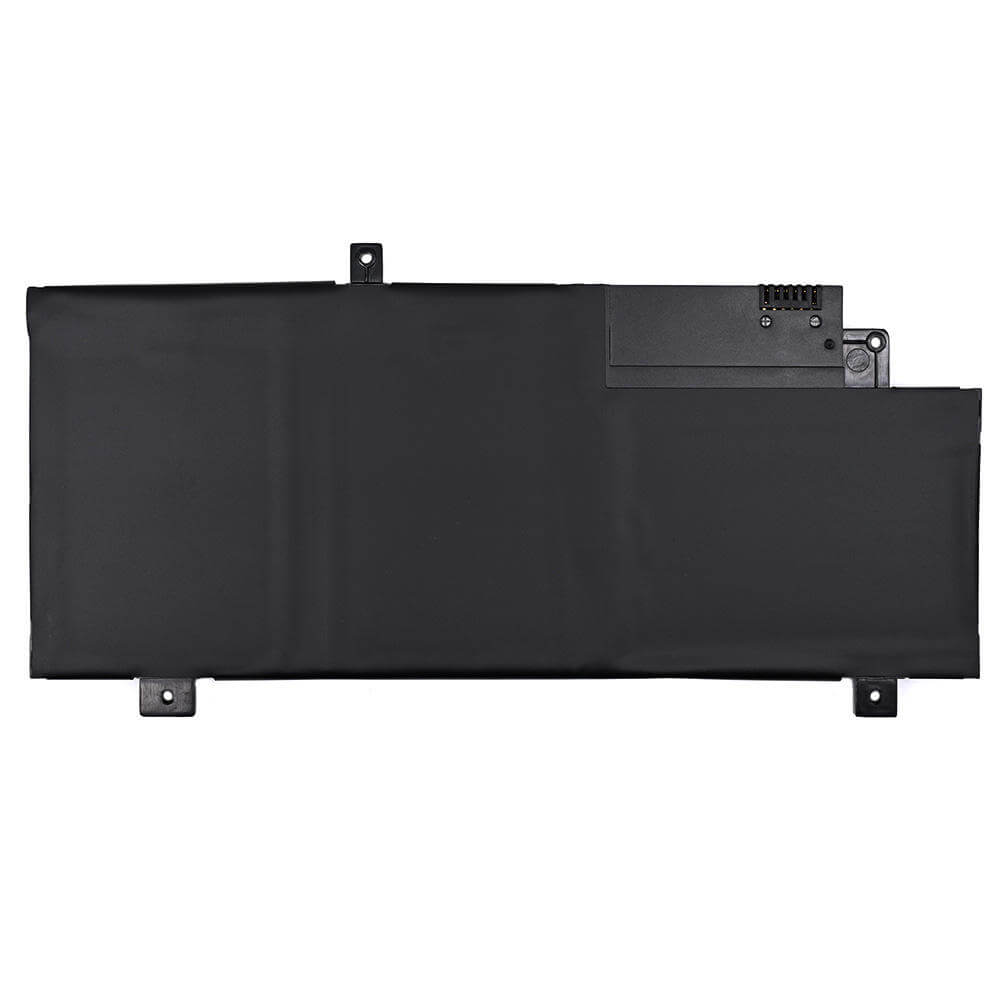

VGP-BPS34 Battery for Sony Vaio Fit 14A 15A Touch SVF14A SVF15A | 11.1V 3650mAh 41Wh – HTJ
- Model Numbers: VGP-BPS34 Battery
- Battery Type: Li-Polymer (Grade A+ High-Density Cells)
- Voltage: 11.1V (Fully compatible with 10.8V)
- Capacity: 3650mAh / 41Wh
- Cells: 3-Cell / 6-Cell Architecture

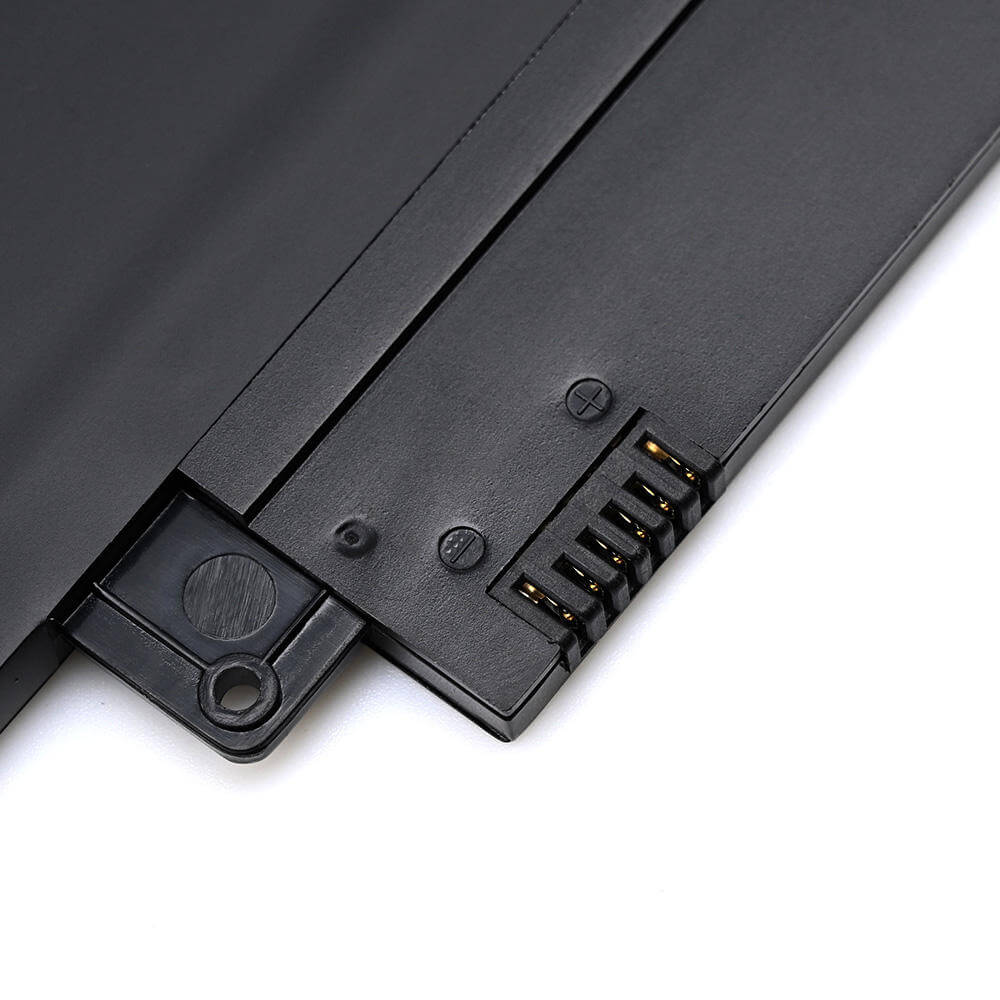

- Connector: Internal Blade-Style Interface
- Condition: 100% Brand New from Factory
- Life Cycle: 600 – 1000 recharge cycles
- Multiple Protection: Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI
- Color: Black
- Certifications: UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133
- OEM/ODM: Yes(Accepted)
- Warranty: 18 Months After Sales, 24/7 Email Support.
- Product Dimensions: 9.8 x 5.31 x 1.22 inches
- Item Weight: 10.5 ounces
VGP-BPS34 Battery for Sony Vaio Fit 14A 15A Touch SVF14A SVF15A | 11.1V 3650mAh 41Wh
Detailed Product Specifications and Features:
Core Technical Parameters:
| Property | Specification |
|---|---|
| Model Numbers | VGP-BPS34 Battery |
| Battery Type | Li-Polymer (Grade A+ High-Density Cells) |
| Voltage | 11.1V (Fully compatible with 10.8V) |
| Capacity | 3650mAh / 41Wh |
| Cells | 3-Cell / 6-Cell Architecture |
| Connector | Internal Blade-Style Interface |
| Condition | 100% Brand New from Factory |
| Life Cycle | 600 - 1000 recharge cycles |
| Multiple Protection | Over Current, Over Voltage, Over Charge & Discharge, Overheat, Short Circuit, ESD, EMI |
| Color | Black |
| Certifications | UL2054, CE, FCC, RoHS, UN38.3, MSDS, IEC62133 |
| OEM/ODM | Yes(Accepted) |
| Warranty | 18 Months After Sales, 24/7 Email Support. |
| Product Dimensions | 9.8 x 5.31 x 1.22 inches |
| Item Weight | 10.5 ounces |
Technical Note:
Design Note: The VGP-BPS34 is an internal Li-Polymer battery.
Compatibility Note: Specifically engineered for the “Fit” Touch series (Multi-flip and standard Touch models). It is fully interchangeable with the long-life VGP-BPL34.
Physical Note: The ultra-slim profile is designed to fit precisely under the bottom casing without causing trackpad pressure.
Important: Internal installation requires removing the bottom cover; ensure the laptop is fully powered down before opening.
Product Features:
- Battery Newest Premium Grade Cells
- Best Circuit Board
- Multiple command chip control, keep the battery stable charge and discharge;
- Over-charger protection and discharger protection, short-circuit protection, ensure fast charges and low power consumption
- Easy & Quick Installation
- Our battery is 100% compatible with the original battery and meets
- CE/FCC/ROHS/UL-certified standards. It is 100% new from the manufacturer and can support up to 1000 recharge cycles over the life of the battery
- Power Interface: Gold-plated connector points to ensure excellent current transport and stable operation.
- Enclosure: The enclosure is made of ABS + PC high-quality material, which has a high-temperature-resistant function to protect your laptop from overheating
- Battery Buckle: The battery buckle is closely connected to the laptop, and the metal interface is stably powered
VGP-BPS34 Battery Battery Compatibility Laptop Model List:
1. Compatible Laptop Model List (Comprehensive)
Series Specific Model Variants & Suffixes
Vaio Fit 14A Touch SVF14A Series: SVF14A14CXB, SVF14A15CXB, SVF14A16CXB, SVF14A19SCB, SVF14A15SNB
Vaio Fit 15A Touch SVF15A Series: SVF15A16CXB, SVF15A18CXB, SVF15A1ACXB, SVF15A1BCXS, SVF15A1DPXB, SVF15A190X
Regional Variants SVF14A1C5E, SVF15A1S2E, SVF15A1Z2EB (European/Asian Models)
⚠️ Absolute Incompatibility NOT FOR: Vaio Fit 14E / 15E (SVF142 / SVF152 series - these use external BPS35 batteries).
NOT FOR: Vaio Duo or Vaio Pro series.
Visual Check Fits models where the battery is hidden inside and the laptop has a metallic finish on the palm rest.
2. VGP-BPS34 Battery Compatible Part Numbers (P/N List)
- VGP-BPS34 (Primary Marketing Code)
- VGP-BPL34 (Extended Life Variant)
- 1-853-528-11 (Sony Service Part Number)
Why Choose HTJ VGP-BPS34 3650mAh Battery?
- True Capacity Grade A+ Cells:
The Vaio Fit series is designed for multimedia and touch interaction, which is power-intensive. We use high-density Li-Polymer cells to match the original 3650mAh capacity, ensuring your laptop maintains its 4–6 hour real-world runtime. - Precision Fitment Architecture:
Thin laptops like the SVF15A have zero tolerance for battery swelling. HTJ cells are vacuum-sealed in premium aluminum laminate to prevent gas buildup, protecting your delicate internal components and screen from pressure damage. - Sony BIOS Smart-Sync:
Sony systems often reject third-party batteries with a “Battery Not Recognized” pop-up. Our FPC (Flexible Printed Circuit) includes a high-end decoded chip that communicates perfectly with the Sony BIOS and “Battery Care Function.” - 18-Month Factory-Direct Warranty:
Avoid the risk of “New-Old Stock” from resellers. HTJ batteries are factory-fresh. We provide an industry-leading 18-month warranty covering electronic failure and significant capacity drop.
How to Install Your New VGP-BPS34 Battery？
The VGP-BPS34 is an internal battery. While the replacement is simple, it requires careful handling of the internal chassis.
⚠️ Crucial Safety Preparation
- Shutdown: Power off the Vaio and disconnect the AC adapter.
- Surface: Work on an anti-static mat or a soft cloth to prevent scratching the lid.
- Tools: A small Phillips head (PH00) screwdriver and a plastic prying tool.
VGP-BPS34 Battery Step-by-Step Installation Guide:
- Remove the Bottom Cover: Turn the laptop over. Remove the rubber feet if they hide screws, and unscrew all visible Phillips screws on the bottom panel.
- Pry Open: Use a plastic prying tool to gently release the clips around the edge of the casing. Lift the bottom cover off.
- Identify the Battery: You will see the wide, flat VGP-BPS34 unit secured by screws and a cable.
- Disconnect the Cable: Carefully pull the battery connector vertically away from the motherboard socket. Do not pull by the wires.
- Unscrew and Swap: Remove the mounting screws holding the battery in place. Lift out the old unit and drop in the HTJ VGP-BPS34.
- Secure and Connect: Replace the mounting screws. Press the battery cable firmly into the motherboard socket until it clicks.
- Finalize: Snap the bottom cover back into place and replace the screws.
- Calibration: Charge to 100% and then allow it to discharge to 5% once to sync the Windows battery meter.
💡 Pro Tip:
If the touch screen becomes unresponsive after installation, check if the battery is pressing against any internal cables. Ensure the battery lies perfectly flat before tightening the screws.
FAQ (Frequently Asked Questions)
Q: My original battery was 10.8V, but this is 11.1V. Is it safe?
A: Yes. In the world of Li-ion batteries, 10.8V and 11.1V represent the same 3-cell serial architecture. They are 100% interchangeable and safe for your Vaio.
Q: Can I use this in my Vaio Fit 15E (SVF152)?
A: No. The “E” models (Fit 14E/15E) use an external VGP-BPS35 battery. The VGP-BPS34 is strictly for the “A” models (Fit 14A/15A Touch).
Q: Why does my Sony laptop say “Battery not detected”?
A: This is usually due to the internal cable not being fully seated. Re-open the laptop and ensure the blade connector is pressed firmly into the motherboard socket.
Laptop Maintenance Tips:
- New battery: For using a new battery, you’d better try a few cycles of discharging to 5%. then charging up to 95%. So that it can be activated completely
- Overuse: Do not always run a battery to 0%, as this would reduce its usage life.
- Charging sequence: When charging, first install the battery, then turn on the power. When fully charged, first cut off the power, then pull the power plug.
- Long-term storage: Please store the unused battery fully charged. (Charge it once a month.) Do not store at low power to prevent reducing the lifespan of a battery
- Charger: Do not replace the laptop adapter casually. If the original adapter cannot be applied due to malfunction or damage, please replace the models so as not to reduce the service life of the battery due to incompatibility.
